Precautions for Connecting Lithium Batteries

Precautions for Connecting Lithium Batteries

In modern household and commercial applications, lithium batteries have increasingly become a favored solution for efficient energy storage. Whether for home energy storage systems or mobile devices, correctly connecting lithium batteries is crucial, not only for device performance and efficiency but also for safety and long-term stable operation. This article will explore the key precautions for connecting lithium batteries, helping readers avoid common problems and safety risks during use.

Ⅰ. Understanding the Basics of Lithium Batteries 🔖

Lithium batteries are batteries that store and release energy through the migration of ions between the positive and negative electrodes. Their working principle is based on the movement of ions between the positive and negative electrodes. During the charging process, lithium ions are released from the positive electrode (usually metal oxide) and conduct through the electrolyte to the negative electrode (usually graphite material). During the discharging process, lithium ions migrate from the negative electrode to the positive electrode, releasing stored energy.

Ⅱ. Basic Principles of Battery Connection📈

* Identification Methods for Positive and Negative Poles:

①Marking Inspection:

Most lithium batteries have clear markings for the positive (+) and negative (-) poles on their casing. Ensure to carefully check these markings to avoid incorrect connections.

②Color Coding:

Many batteries use color coding to distinguish the positive and negative poles, where red generally represents the positive pole, and black or blue represents the negative pole. Understanding and following these color codes can help avoid connection errors.

③Using a Multimeter:

If the markings are unclear, a multimeter can be used to measure the voltage at both ends of the battery. The voltage reading between the positive and negative poles should be the nominal voltage, with the red probe in contact with the positive pole and the black probe with the negative pole.

* Importance of Avoiding Short Circuits:

①Risks of Short Circuits:

Short circuits occur when the positive and negative poles come into direct contact or are inadvertently connected through a conductive material, leading to a sharp increase in current, which can cause overheating, fires, or explosions. Therefore, measures must be taken to prevent short circuits.

②Insulation Protection:

Use insulating tape or other insulating materials to wrap the battery terminals to prevent short circuits. Especially when handling or storing batteries, ensure that the terminals do not come into contact with metal objects.

③Standard Operation:

When connecting or disconnecting batteries, always disconnect the power first to avoid operating under live conditions. Use specialized tools and follow operational procedures.

* Correct Methods for Battery Connection:

A. Series Connection:

Connect multiple batteries in series to increase the total voltage. In series, connect the positive pole of one battery to the negative pole of another. For example, two 12.8V lithium batteries in series will have a total voltage of 25.6V.

B. Parallel Connection:

Connect multiple batteries in parallel to increase the total capacity. In parallel, connect all the positive poles together and all the negative poles together. The total voltage remains unchanged after parallel connection, but the capacity is the sum of the capacities of each battery.

C. Balance Charging:

Whether in series or parallel connection, it is necessary to ensure that the state of each battery is consistent to prevent unbalanced charging that can damage the batteries. Use a Battery Management System (BMS) to monitor and manage the state of the batteries to ensure safety and performance.

Ⅲ. Steps for Connecting Lithium Batteries📝

* Preparation Phase

Check Compatibility with Devices:

First, confirm whether the battery voltage and capacity match the device to be connected. Incompatible batteries may cause device damage or reduced battery performance.

Ensure a Safe Environment:

Select a clean, well-ventilated environment for connection operations, away from fire sources and flammable materials, to reduce safety risks.

* Connection Phase

Disconnect the power source:

Before connecting the battery, make sure that the power of both the device and the battery is turned off to prevent short circuits or electric shocks.

Correctly Connect Positive and Negative Poles:

Based on the markings on the battery, correctly identify and connect the positive and negative poles. Use appropriate wiring colors to avoid confusion, typically red or wires with a "+" mark connect to the positive pole, and black or wires with a "-" mark connect to the negative pole.

Check the connections:

After the connection is completed, inspect all connection points to ensure they are secure, with no signs of looseness or poor contact.

* Testing Phase

Preliminary Functional Testing：

Under safe conditions, perform a power-on test on the device to check if it can start and operate normally.

Check for Abnormal Heating or Voltage Fluctuations:

During the testing process, pay close attention to whether there is abnormal heating or voltage fluctuations at the battery and connection points, which may indicate improper connection or device failure.

Throughout the entire connection process, always follow the principle of safety first. If you encounter any problems or uncertainties, immediately stop the operation and seek professional help. By following these steps, you can ensure the safe connection of lithium batteries and the stable operation of devices.

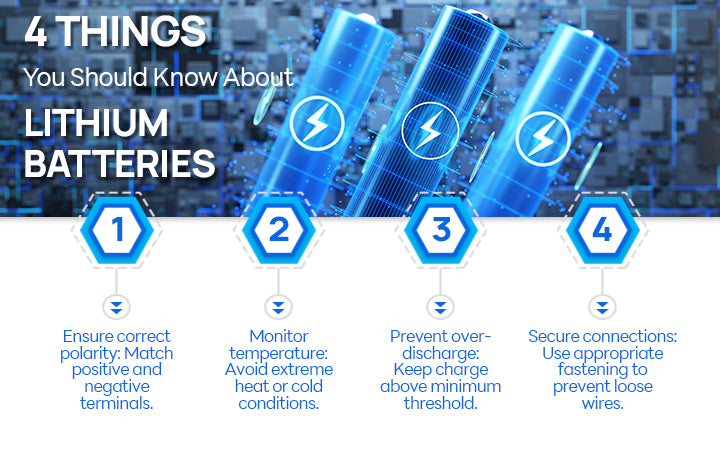

Ⅳ. Avoiding Common Mistakes🚫

1.Avoid Overcharging and Over-discharging

Understand Battery Specifications:

Each lithium battery has its recommended charging and discharging range. Understanding and adhering to these specifications can prevent overcharging or over-discharging, thus extending battery life.

Use Smart Chargers: Choose smart chargers with automatic power-off functions that stop charging when the battery is full to avoid overcharging.

2.Avoid Using Mismatched Chargers

Charger and Battery Matching:

Ensure that the output voltage and current of the charger match the requirements of the battery. Using mismatched chargers may cause battery damage or low charging efficiency.

Pay Attention to Charger Quality: Choose chargers from well-known brands with good reviews to avoid using inferior chargers that may not have adequate safety protection measures.

3.Regularly Check the Condition of Batteries and Connection Lines

Visual Inspection: Regularly inspect the battery for signs of swelling, leakage, or damage. Connection lines should also be checked for loosening, corrosion, or breaks.

Performance Testing: Use professional equipment to test the battery's performance, including capacity testing, internal resistance testing, etc., to assess the health of the battery.

Ⅴ. Emergency Situation Handling🔴

1.Response Measures for Overheating or Smoking Batteries

· Immediate Power Off:

Once a battery is found to be overheating or smoking, immediately cut off the power supply and stop the charging and discharging process of the battery.

· Keep Away from Fire Sources:

Quickly move the battery away from environments that may cause a fire, away from any items that may fuel the fire.

· Cooling Treatment:

Under the premise of ensuring safety, non-conductive, non-flammable objects (such as asbestos gloves, dry powder fire extinguishers) can be used to gently cover the battery to help it cool down.

· Monitor the Situation:

Continuously monitor the state of the battery during the cooling process until the temperature returns to normal.

2.Emergency Evacuation and Alarm Procedures

· Orderly Evacuation:

If a battery incident causes a fire or safety threat, immediately evacuate according to the building's evacuation procedures. Quickly leave along the safety exits and ensure that other personnel also evacuate as soon as possible.

· Immediate Alarm:

At a safe distance, use the building's alarm system or manually dial the emergency number, such as the fire alarm, to notify the fire department and other emergency services.

· Do Not Return to the Dangerous Area:

Once evacuated, do not return to the dangerous area to ensure the safety of yourself and others.

· Provide Detailed Information:

Provide the fire department and emergency services with detailed information about the incident, such as battery type, location, and event description, to help them effectively handle the emergency.

Ⅵ. Conclusion

As our dependence on lithium batteries continues to grow, safely connecting and using these powerful energy storage devices becomes increasingly important. In this article, we have explored the basics of lithium batteries, connection principles, operational steps, and emergency response strategies. Our goal is to provide a comprehensive guide to help you connect and use lithium batteries safely and efficiently. Finally, we hope that this article can become a reliable reference for you when connecting lithium batteries. We believe that through continuous learning and practice, everyone can become an expert in the safe use of lithium batteries. Let's work together to contribute to creating a safer and more efficient lithium battery usage environment.
