Mastering LiFePO4 Battery Connections:
A Comprehensive Guide

Introduction



Battery technology has revolutionized various industries, and lithium iron phosphate batteries (LiFePO4) have become a reliable and efficient power source. In this article, we will explore the critical role of battery connections in maximizing the performance and life of LiFePO4 batteries. Whether you are a hobbyist or a professional, understanding the intricacies of battery connections is essential to fully realize the potential of these advanced energy storage solutions.



LiFePO4 Battery Overview



LiFePO4 batteries are popular due to their superior performance. They have high energy density, longer cycle life, and enhanced safety features compared to other battery chemistries. These batteries can be used in renewable energy systems, electric vehicles, portable electronics, and more. To unlock their true potential, proper battery connections are essential.



Importance of Battery Connections



Efficient power transfer and optimal battery performance depend on safe and reliable connections. Poor battery connections can lead to voltage drops, inefficient energy transfer, overheating, and even battery failure. By ensuring proper connections, you can maximize the performance, efficiency, and life of your LiFePO4 battery system.

Types of battery connections for LiFePO4 batteries

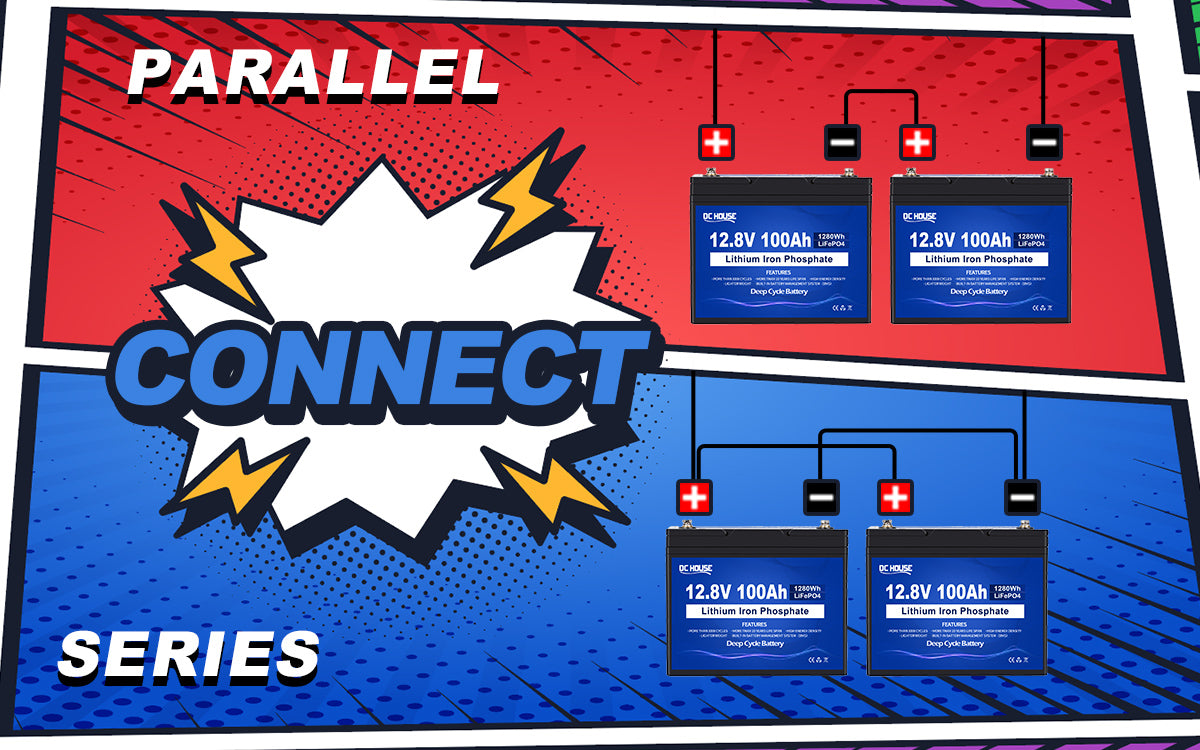

1. Series connection

In a series connection, the positive terminal of one battery is connected to the negative terminal of another battery, forming a chain-like structure. This arrangement increases the total voltage of the battery pack while keeping the capacity the same.



Advantages of series connection

- Increased voltage:

Series connection allows for higher voltage output, making it suitable for applications that require higher voltage levels.

- Enhanced power:

Higher voltage output can provide more power, allowing devices that require higher power levels to operate efficiently.

- Efficient use of space:

Series connection allows for compact battery pack designs because the batteries are connected end-to-end.  Considerations for series connection:

- Balanced battery voltage:

It is critical to ensure that all batteries in a series connection have similar voltage levels. If one battery has a significantly lower voltage, it will cause an imbalance that affects overall battery performance and life.



2. Parallel connection

Parallel connection involves connecting the positive terminals of multiple batteries together and the negative terminals together. This configuration maintains voltage while increasing the total capacity of the battery pack. For example, if two 100Ah batteries are connected in parallel, the total capacity of the battery pack will be 200Ah.



Advantages of Parallel Connection

- Increased Capacity:

Parallel connection allows for higher capacity, making it suitable for applications that require longer runtime or higher energy storage.

- Balanced Cell Voltage:

Parallel connection helps maintain balanced cell voltages because cells of similar capacity are connected together.

- Redundancy and Reliability:

If one cell in a parallel connection fails, the other cells can compensate, ensuring that the entire system continues to operate.



Considerations for Parallel Connection

- Uniform Cell Characteristics:

It is important to use cells with similar capacity, internal resistance, and voltage characteristics in parallel connection. Mismatched cells can result in unbalanced charging and discharging, which can reduce overall battery performance.

Overall Battery System Design Considerations



When designing a battery system, the choice between series and parallel connection depends on the specific requirements of the application. Some considerations include:

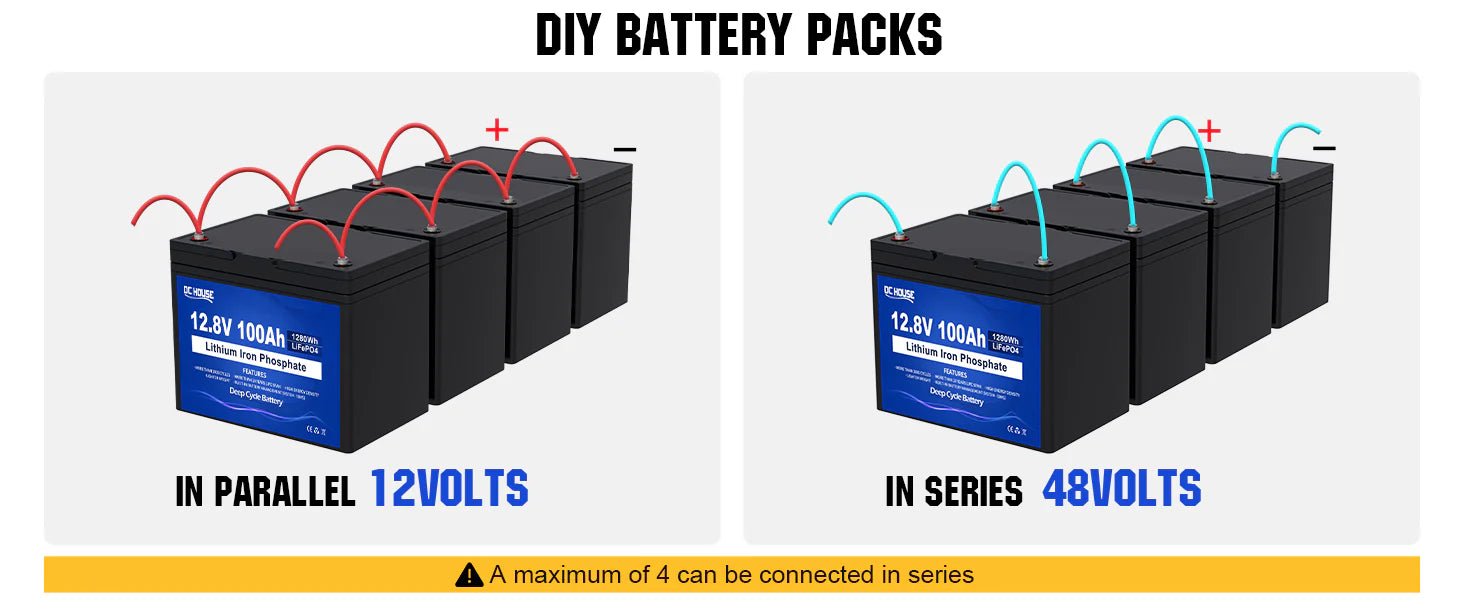

1. Voltage Requirements: If the application requires higher voltage levels, then series connection is appropriate. For example, electric vehicles often use series connection to achieve the voltage required for motor operation.

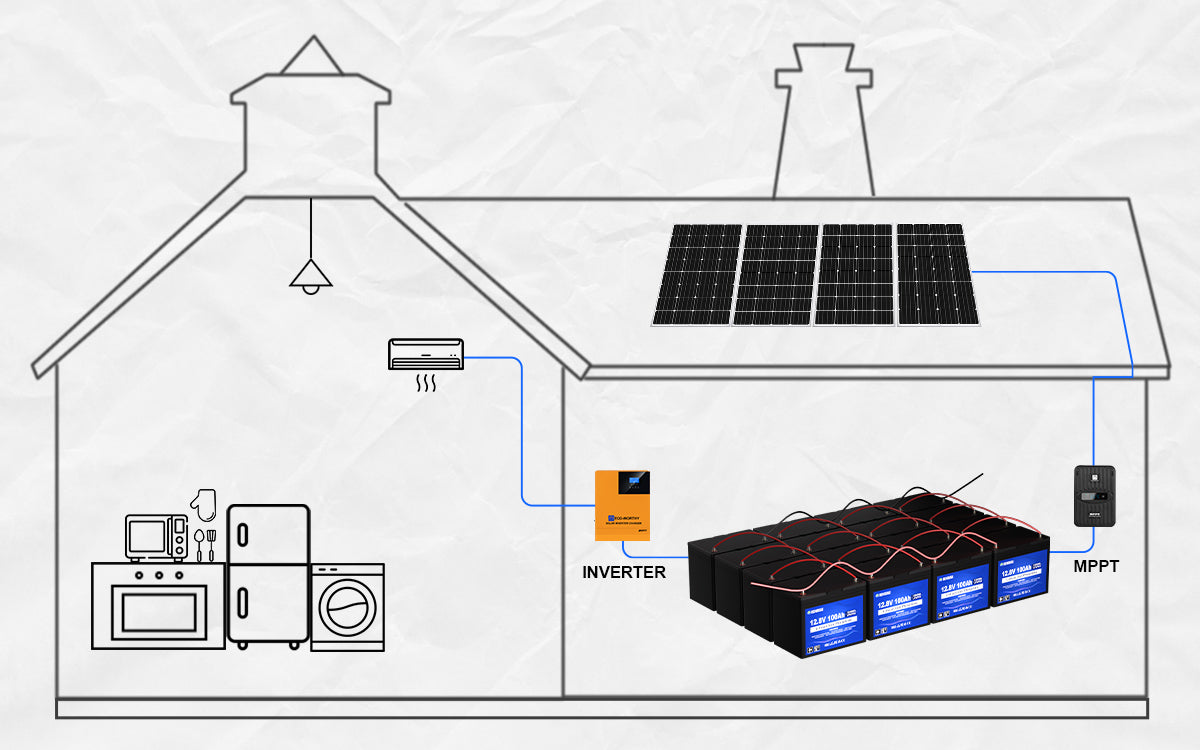

2. Capacity Requirements: If the application requires higher capacity or longer runtime, then parallel connection is appropriate. Off-grid solar systems or energy storage applications often use parallel connections to increase the total capacity.

3. Space and weight limitations: Consider available space and weight limitations when choosing between series and parallel connections. Series connections are compact, while parallel connections may result in a larger and heavier battery pack.



By understanding the advantages and considerations of series and parallel connections, an efficient and reliable lithium iron phosphate battery system can be designed to meet the specific requirements of its application.



Preparation



Before connecting the batteries, it is important to do certain preparations to ensure safety and optimal performance. Here are the preparations to consider:

  • Configuration planning: Determine the voltage and capacity requirements required for the application. Calculate the number of batteries required for the desired series or parallel configuration.
  • Battery selection: Select batteries with similar characteristics, including capacity, voltage, and internal resistance. Mismatched batteries will result in unbalanced charging and discharging, which will reduce overall performance and may cause damage.
  • Battery testing: Before connecting, test each battery to ensure that it is in good condition and has similar voltage levels. If any battery shows signs of damage or has significantly different voltages, it should be replaced.
  • Prepare tools: insulated wrench, screwdriver, and multimeter. Make sure the battery area is clean, dry, and the power is disconnected. Wear protective gear (gloves and safety glasses) and ensure proper insulation to prevent short circuits and electrical hazards. Following these precautions will ensure safe and effective connections.



Maintenance and Care



Check connections regularly: Regularly check battery connections for signs of corrosion, loose fittings, or damage. Resolve any issues promptly to prevent performance degradation.









Conclusion



Proper battery connections are critical to maximizing the performance and life of lithium iron phosphate batteries. By understanding the importance of battery connections, selecting the appropriate connection type, following best practices, and troubleshooting common problems, you can ensure that your LiFePO4 battery system operates efficiently and reliably. Remember to prioritize safety and regular maintenance to achieve its full potential.
